女拔學生一樣不懂的DSE Biology分髙下關鍵題(三)
10/11/2017
我們繼續討論how to study movement in humans. 上次分析了最常考又最多學生混淆的Movement at elbow joint and movement of the leg at hip joint, 這類題目最常出現在MC, 今次先同大家講一條long question在這個chapter相對常出, 又勁多學生失分的題型,:
DSE 2013 1B Question 2

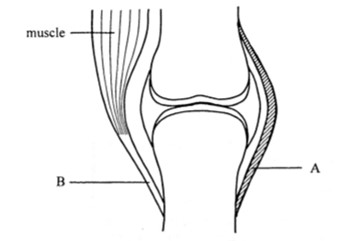

The diagram below shows the structure of a joint
- a. Name the type of joint and suggest an example of such a joint in the body (2).
- b. Briefly describe how A and B work together to bring about movement at the joint shown (4).
a part 學生們一般都沒有問題, 都能解答出是hinge joint (type)及knee/elbow joint (examples). 然而b part卻從CEE到DSE都考起很多學生! 以我多年作為Biology Tutor, 補習DSE Biology的經驗, 學生不懂這一條有兩大個原因: 第一是不斷背誦內容卻沒有好好細看圖片! 要知道但凡考structure and function, 不能只集中在記function, 卻沒有一邊記圖像, 到考圖時才發現分不清記了的structure其實是哪部分! 而且圖像記憶法事半功倍, 是一個我常用來幫助學生增強記憶的好方法! 所以我的筆記都嚴選採用清晰的圖片.
第二個原因, 就是欠缺一些相近structure的compare and contrast, 這些是我製作notes一定不能忽略的, 因為這些題目可以考核學生是否能對所學的深入理解及充分掌握, 而且也是常考題型! 大家可以看看怎麼用table去做compare and contras, 注意structure要對上圖片啊:

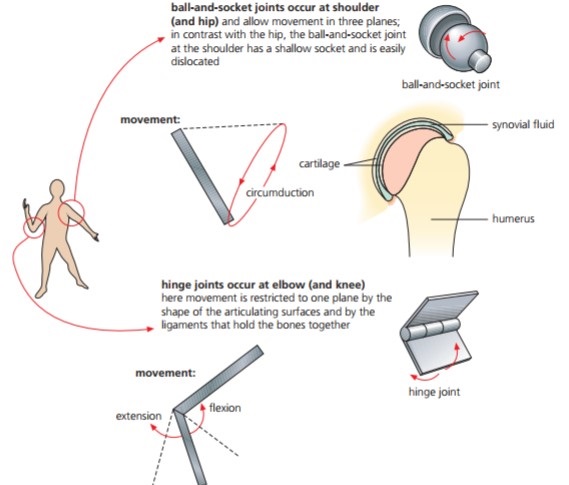

- Types of movable joints
Type | Examples | Degree of movement |
Hinge joints | Elbow, knee and finger | In one plane only |
Ball-and-socket joints | Shoulder and hip | In all planes |

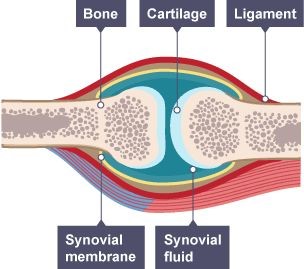

2. Structures and functions of a movable joint
Structures | Functions |
Ligament | The bones are held together and completely enclosed by a capsule of ligament to prevent dislocation of joints |
Cartilage | Absorbs shocks and reduce friction between bones to protect the bones from wearing away during movement |
Synovial membrane | Secretes and encloses synovial fluid |
Synovial fluid | Act as a lubricant to reduce friction in the joint Nourish the cartilage cells |

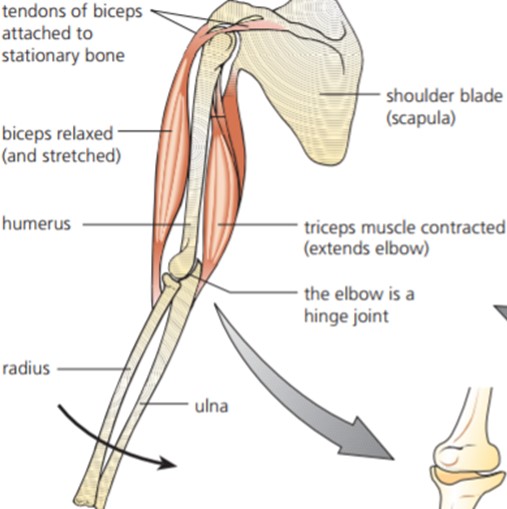

3.Compare between tendons and ligament
Tendons | Ligaments |
Tough to prevent tearing | Tough to prevent tearing |
Attach muscles to bones | Connect bones together at joints |
Inelastic | Elastic |
看完了, 現在再把題目做一做:
The diagram below shows the structure of a joint
- Name the type of joint and suggest an example of such a joint in the body (2).
- Briefly describe how A and B work together to bring about movement at the joint shown (4).
就可以立即由Table One and Table Two得出答案!Part a是希望你能分辨hinge joint 及 ball-and-socket joint, 並可以舉例, Part b是需要你能認出及比較tendon and ligament.

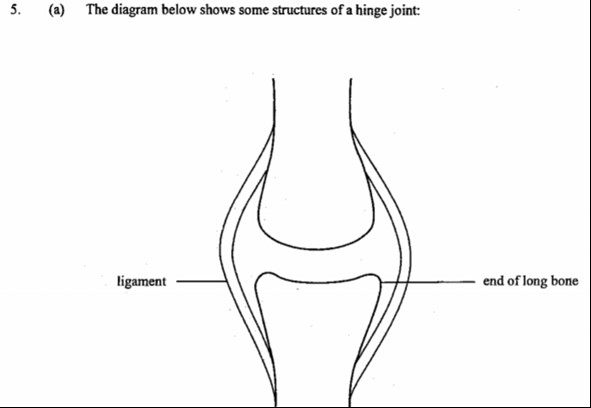

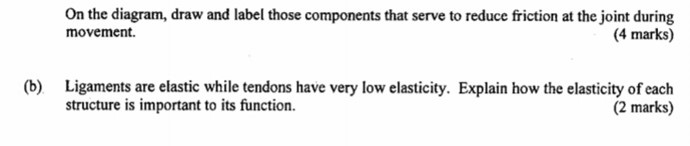

再看看2007 AL 1A Question 5, 也是一條common in AL的題目, 而程度適用於DSE
只要用到Table 2的資料, 又可以輕鬆取Full mark啦!
